Tapered Roller Bearing

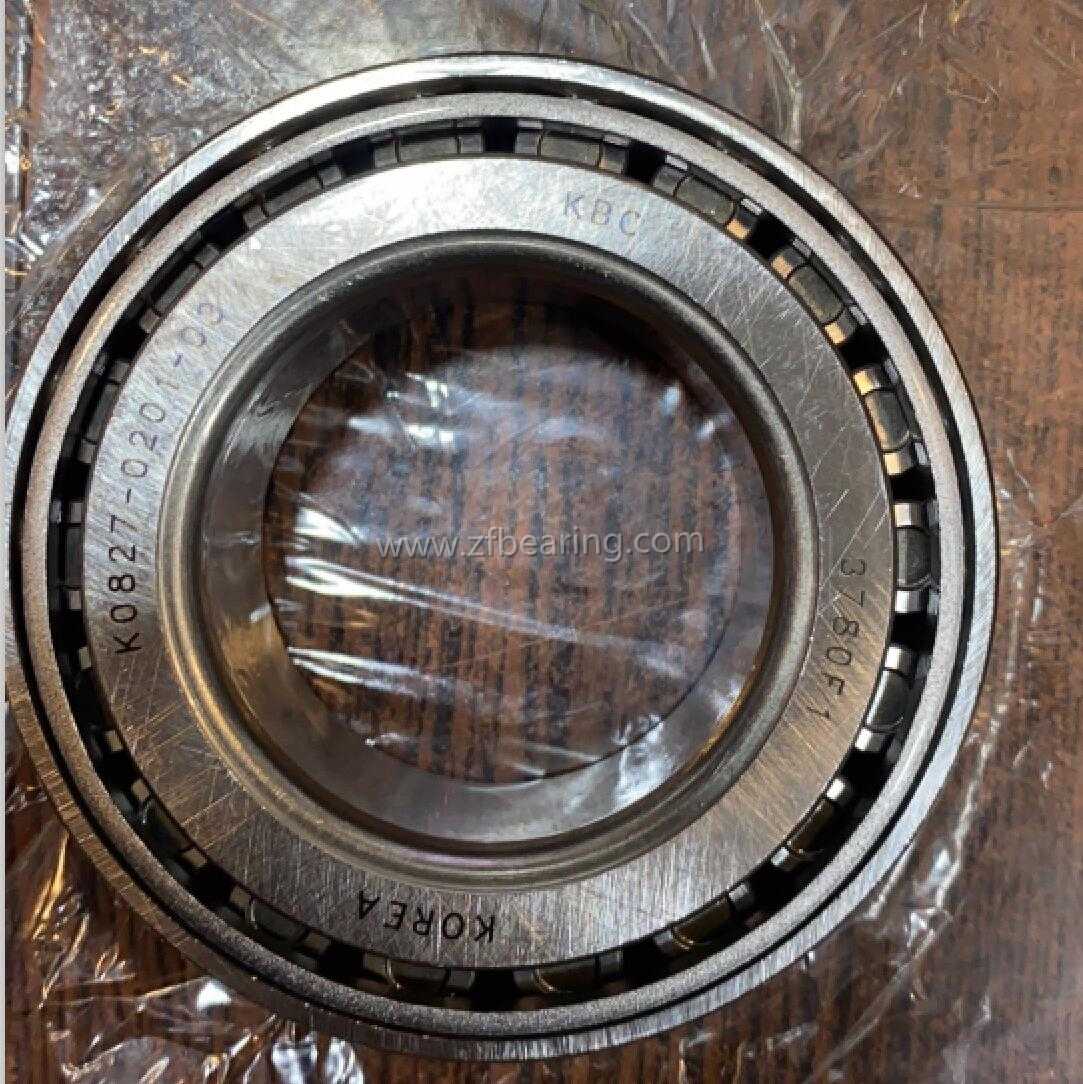

3780F1/3720 Bearing 50mm ID 3780F1/20 Tapered Bearing 5093.26430.162

size:50*93.264*30.162
weight:0.80kgs
Material：Chrome steel, Gcr15
Interchange: 3780F1/3720, 3780F1/20, 3780F1-20, 3780/1YD/20
Description: 3780F1/20 size:50*93.264*30.162 weight:0.80kgs
INQUIRY EMAIL

3780F1/3720 Bearing Specification:

3780F1/3720 bearing is taper roller bearing fond in many applications.
For this bearing,
Inner Ring: 3780F1
Outer Ring: 3720
Size: 50*93.264*30.162mm
Weight: 0.8kg/set
Material: Chrome steel Gcr15
Cage: Standard steel cage

Precision: Standard ABEC1/P0

Drawing Re: KBC 3780F1/20

Interchange: 3780F1/3720, 3780F1/20, 3780/1YD/20

Related Tapered Bearing Size Chart mm:

Model Number	Dimensions (mm)	Weight (kg)
18790/18723	50.800×88.900×20.638	0.480
368/362A	50.800×88.900×20.638	0.510
368A/362A	50.800×88.900×20.638	0.500
370A/362A	50.800×88.900×20.638	0.490
368A/362AX	50.800×88.900×23.812	0.550
28580/28520	50.800×89.980×24.750	0.660
368/362	50.800×90.000×20.000	0.520
368/363	50.800×90.000×20.000	0.550
368A/362	50.800×90.000×20.000	0.510
370A/362A	50.800×90.000×20.000	0.500
28580/28521	50.800×92.075×24.608	0.710
28580/28523	50.800×92.075×27.780	0.760
375/374	50.800×93.264×20.638	0.590
375-S/374	50.400×93.264×20.638	0.590
375/3720	50.800×93.264×26.988	0.700
375/3730	50.800×93.264×26.988	0.720
3775/3720	50.800×93.264×30.162	0.850
3780/3720	50.800×93.264×30.162	0.800
3780/3730	50.800×93.264×30.162	0.850
